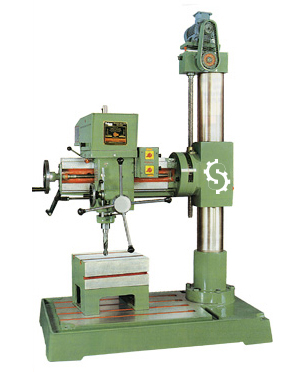

Dedicated and experienced Engineers at our Factory utilizes various sophisticated machinery and innovative techniques in the production of our 40 mm cap. Back geared Auto feed Radial Drill Machine (PMW R40BA). These are configured with best gears and other precision parts and bears machine measurement of 1350 x 850 x 1825 mm. We offer our machines in customized form that renders drilling, tapping and boring in M.S. and spindle speeds (RPM x steps) of 88-2600 x 8 Steps and Autofeed 0.05 & 0.09 mm/rev..

• Configured with steel worm supported trough ball bearings at both sides


• Screws in the machines are supported through taper roller bearings


• Wide column supports, column bracket & arm


• Oil bath lifting assembly


• Greater support through close guideways and wider drilling head


• Structured design arm for wide support and higher rigidity


• Heavy-duty lifting screw of 35mm diameter
• Elongated bottom for greater rigidity to reduce vibration
• Heavy-duty column with heavily ribbed base plate
• 250mm long spindle travel
• 78mm steel RAM with 2.5 module heavy teeth
• Hardened Autofeed Gears of 2.5 Modules & Reduction Worm & Gears of 9 DP teeth ensures very long life and greater load capacity.
